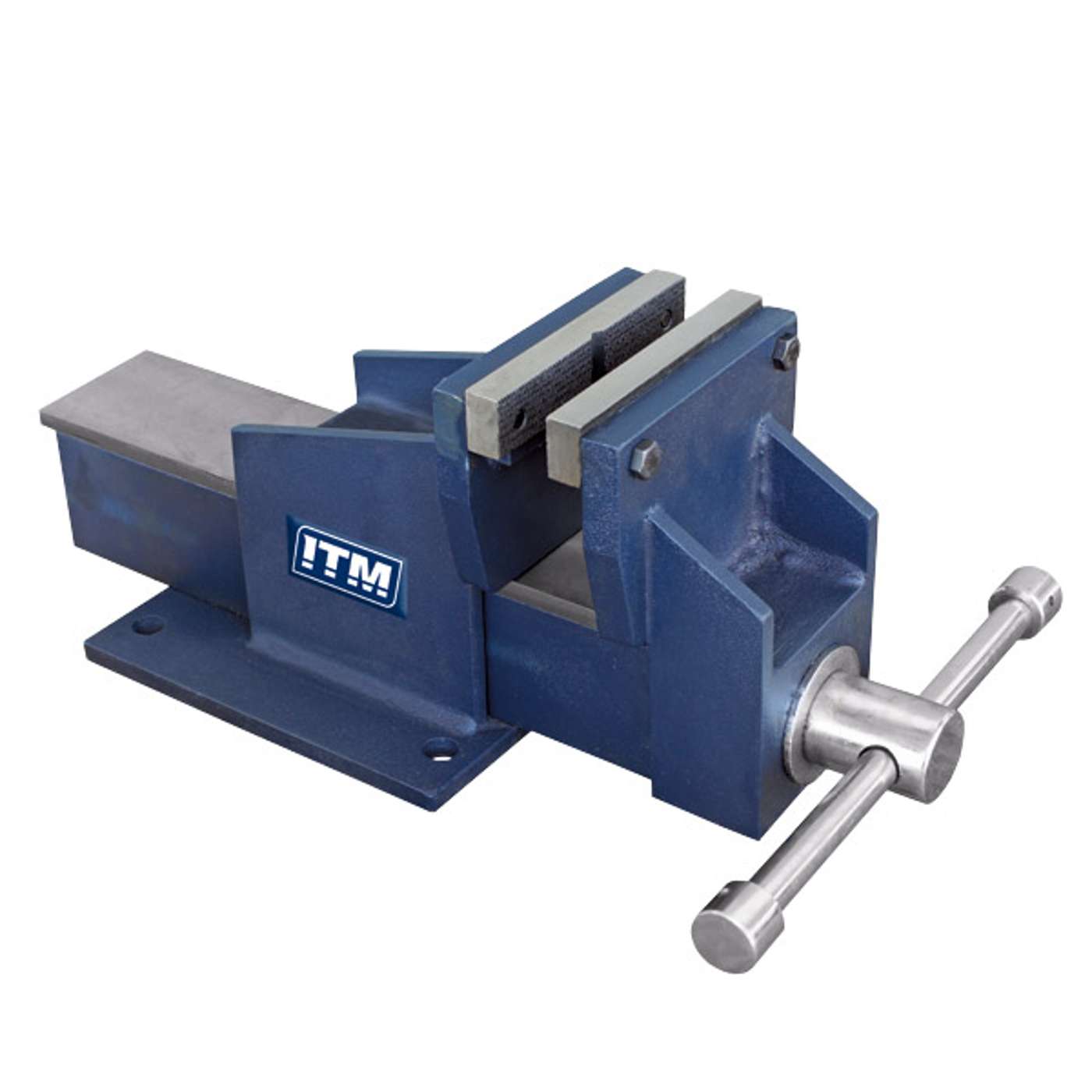

ITM Fabricated Steel Bench Vices (Straight Jaw)
The ITM Fabricated Steel Bench Vice range represents the ultimate solution for heavy-duty fabrication, welding, and industrial workshop tasks. Unlike standard cast iron vices that can be brittle and prone to cracking under shock, these units are constructed from extra heavy-duty fabricated steel, offering superior tensile strength and durability. Whether you are hammering, filing, or grinding, these vices provide the rigid stability and massive clamping power needed to hold your workpiece rock-steady.
Features:
Fabricated Steel Body: Engineered from high-strength fabricated steel rather than cast iron, providing exceptional resistance to impact and shock, ensuring the vice won't fracture even during heavy hammering applications.
Integrated Pipe V-Groove: The straight jaws feature a built-in vertical V-groove, giving you the versatility to securely clamp round materials like pipes and tubes without them rolling or crushing.
Precision Knurled Jaws: The hardened steel jaws feature a machined knurled surface that bites firmly into flat stock, ensuring your workpiece doesn't slip, twist, or vibrate while you work.
Large Diameter Screw: Features a heavy-duty lead screw that delivers smooth, consistent movement and massive clamping pressure with minimal handle effort.
Stable Mounting Base: Designed with a wide, flat mounting footprint to distribute force evenly across your workbench, reducing flex and preventing the vice from lifting under extreme load.
Specifications:
Jaw Type: Straight with V-Groove
Material: Fabricated Steel
Mounting Type: Fixed Base
Available Configurations:
TM102-100 - 100mm Jaw Width
Max Opening: 115mm | Jaw Depth: 75mm
Weight: 10.5kg
Base Dimensions: 165mm x 150mm
TM102-125 - 125mm Jaw Width
Max Opening: 135mm | Jaw Depth: 95mm
Weight: 18.6kg
Base Dimensions: 200mm x 180mm
TM102-150 - 150mm Jaw Width
Max Opening: 170mm | Jaw Depth: 105mm
Weight: 22.6kg
Base Dimensions: 230mm x 200mm
Note: Please select the specific Part Number (TM102-xxx) from the dropdown menu to view the exact price and availability for that size.
