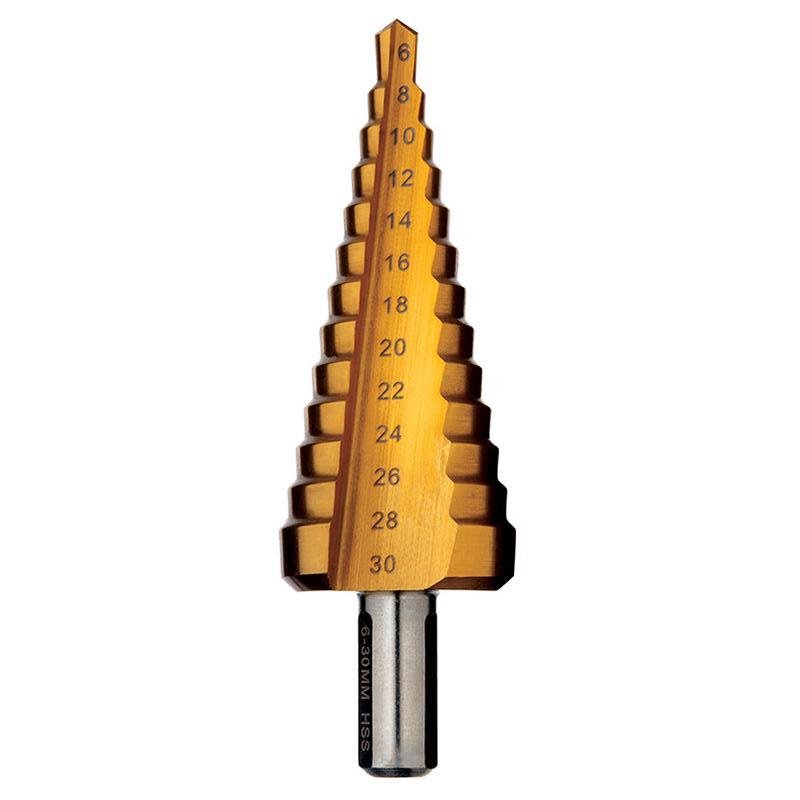

Alpha 2 Flute HSS Step Drill
Drill and deburr in a single process with the Alpha 2 Flute Step Drill. Made from premium HSS M2 steel and TiN coated for longer life, this drill bit is designed for smooth, high-performance cutting. The self-starting split point eliminates the need for a pilot hole, while the 2-flute design ensures clean, round holes. Laser-etched sizes make it easy to identify the correct step, and the 3-flat shank prevents slippage in your drill chuck.
Key Features
Drills & Deburrs: Completes both tasks in one process.
Premium Material: Made from HSS M2 steel with a TiN coating to reduce heat and increase lubricity.
Self-Starting: Split point design removes the need for a pilot hole.
Smooth Cutting: 2-flute design for clean, accurate holes.
No-Slip Shank: 3 flats on the shank prevent slippage in the chuck.
Ideal For: Non-ferrous metals, sheet steel, plastic & stainless steel up to 3mm thick.
Suits: Non-hammer action portable power drills.
Specifications by Model
4-12mm (9STM4-12)
Steps: 9
Shank: 6.0mm
Sizes: 4, 5, 6, 7, 8, 9, 10, 11, 12mm
4-20mm (9STM4-20)
Steps: 9
Shank: 8.0mm
Sizes: 4, 6, 8, 10, 12, 14, 16, 18, 20mm
5-35mm (9STM5-35)
Steps: 13
Shank: 10.0mm
Sizes: 5, 7.5, 10, 13, 16, 19, 21, 23, 26, 29, 31, 33, 35mm
6-30mm (9STM6-30)
Steps: 13
Shank: 10.0mm
Sizes: 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30mm
6-32mm (9STM6-32)
Steps: 14
Shank: 10.0mm
Sizes: 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32mm
